I wanted to remotely turn my Bambu Lab P1S printers on and off via Wi-Fi and track energy usage — without opening or modifying the printers.
The solution: a Shelly 1PM Gen3 wired inline into a standard IEC C14/C13 power cable, housed in a 3D printed enclosure.
Since it uses the same connector found on PCs, monitors, and most electronics, it can be repurposed for any device.
parts list
- Shelly 1PM Gen3 — 16A Wi-Fi relay with power metering
- 3D Printed Enclosure — Fits Shelly 1/1PM Gen2-Gen3, holds 3 WAGO clamps. A Mini series version is also available.
- WAGO 221 Lever-Nuts — 3x connectors (Live, Neutral, Earth)
- IEC C14 to C13 extension cable — 10A 250V rated
- Heat-set brass inserts + M3 screws
- Labels for identification
the build

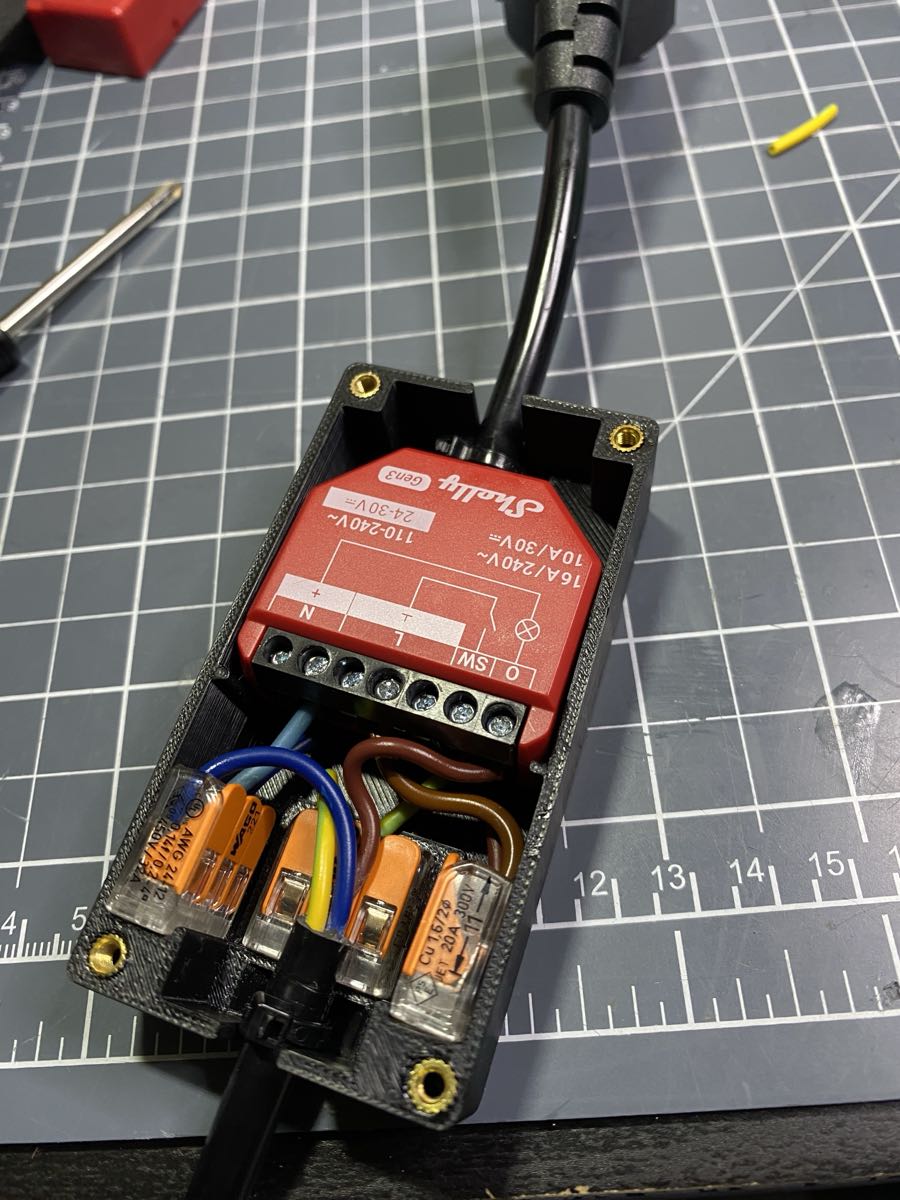

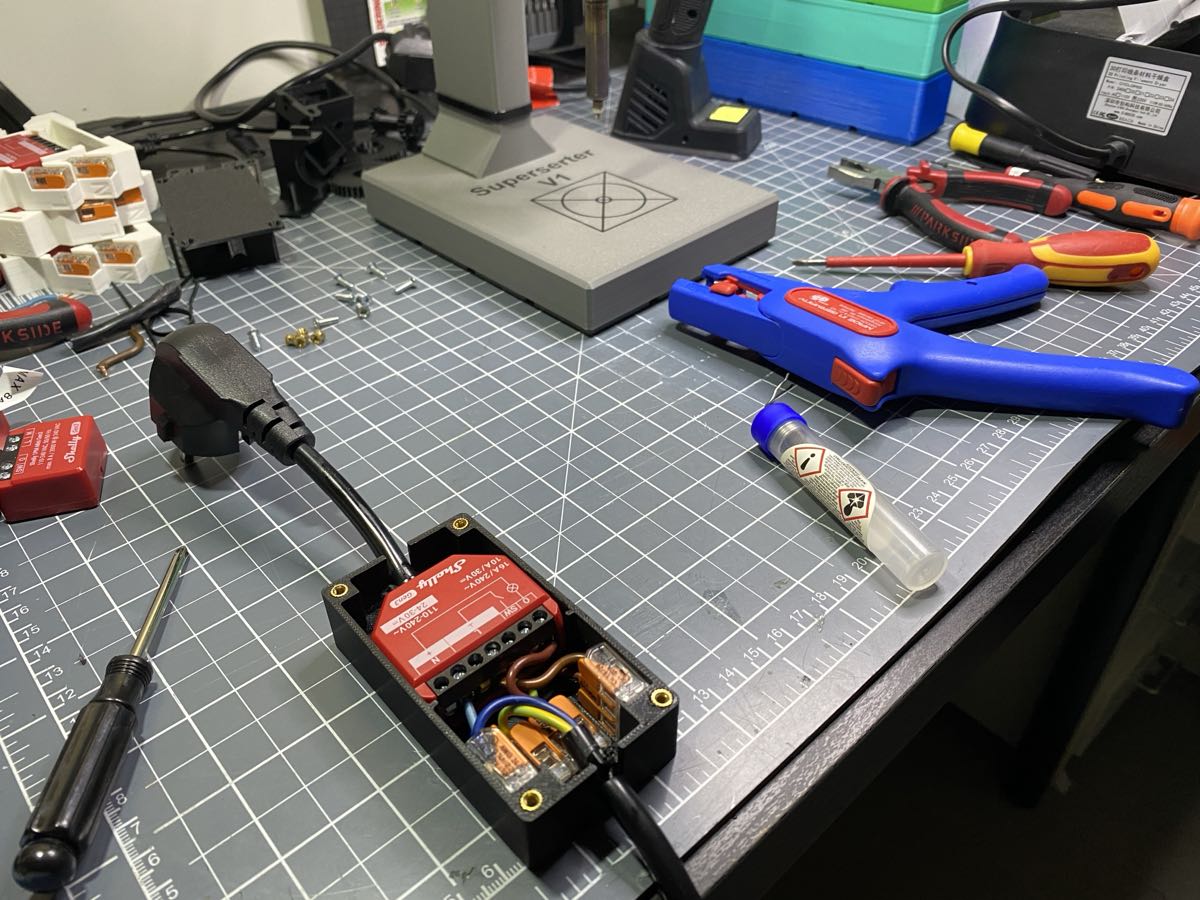

Cut a standard IEC C14-to-C13 cable in half, route both ends through the enclosure, and wire through the Shelly using WAGO connectors. Live goes through the Shelly’s L and O terminals; Neutral and Earth pass straight through via WAGO connectors.

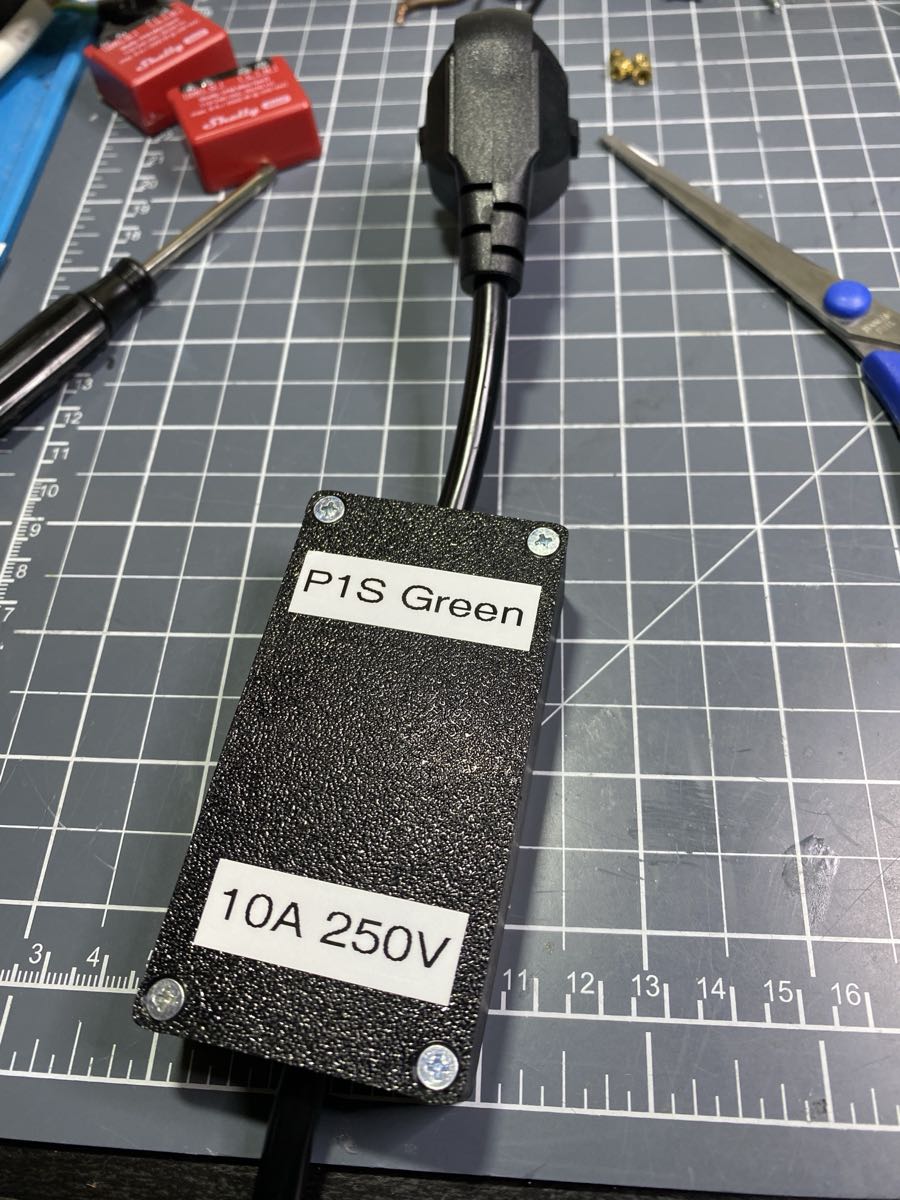

Each unit is labeled with the printer name and rated capacity (10A 250V). I built two — one for each P1S. The Shelly connects to Wi-Fi and gives you remote on/off control, real-time energy monitoring, and integration with Home Assistant, MQTT, or the Shelly app.
Completely non-intrusive — no printer modifications, no voided warranty. Swap back to a regular cable anytime.
